Printable Files: Scaffolding Clamp Free Test Part

Excited about 3D printing your own scaffolding clamps but want to make sure it will work on your printer? Try this one out for free. This file is for testing and personal use only as defined by the Terms and Conditions

What's Included in Your Files?

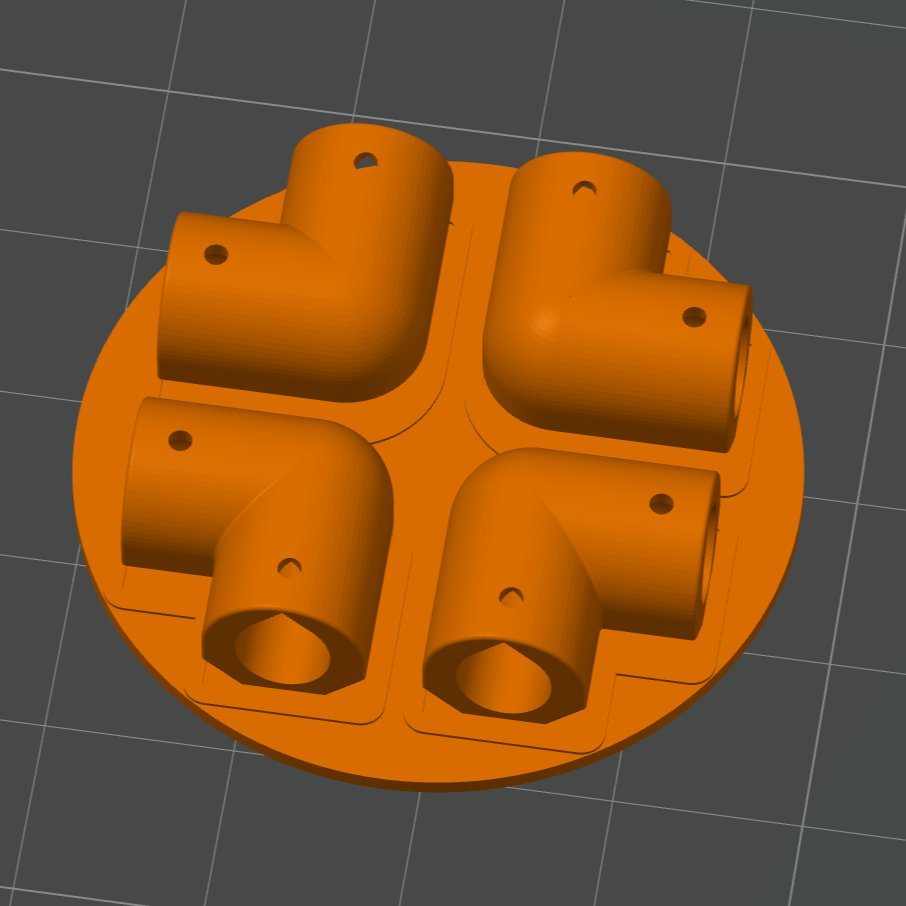

• Elbow Clamps

What about the bars?

The bars in our kits are made of 0.21" diameter drinking straws. Purchasers of these files can buy straws direct from us. Contact us for details.

Printing Instructions

Each individual clamp is quite small and while it is possible to print them one at a time, printing them in a batch is recommended. The Designer's Kit is ready to go as a batch print. It is recommended to build your own smaller batch to test the size and fit of parts. Each part is modeled on a custom raft to provide maximum bed adhesion. The raft is 1mm thick. Add multiple clamps into your work area of your slicer and then use your slicer's tools to add a primitive cube or cylinder. Shrink the height on the Z axis to 1mm and scale the X and Y axis to cover all of your parts. The parts are designed for standard print settings with PLA, 2 perimeters, 15% infill. Due to variation of printers, slicers, and material it is possible that you may need to scale the parts larger or smaller by a few percent to get a perfect fit from your machine. If you source your own bars then you will need to experiment with scaling to find the right fit.
